SuperStratum™ Aluminum Composite Panels

RVCargoCommercial Modular

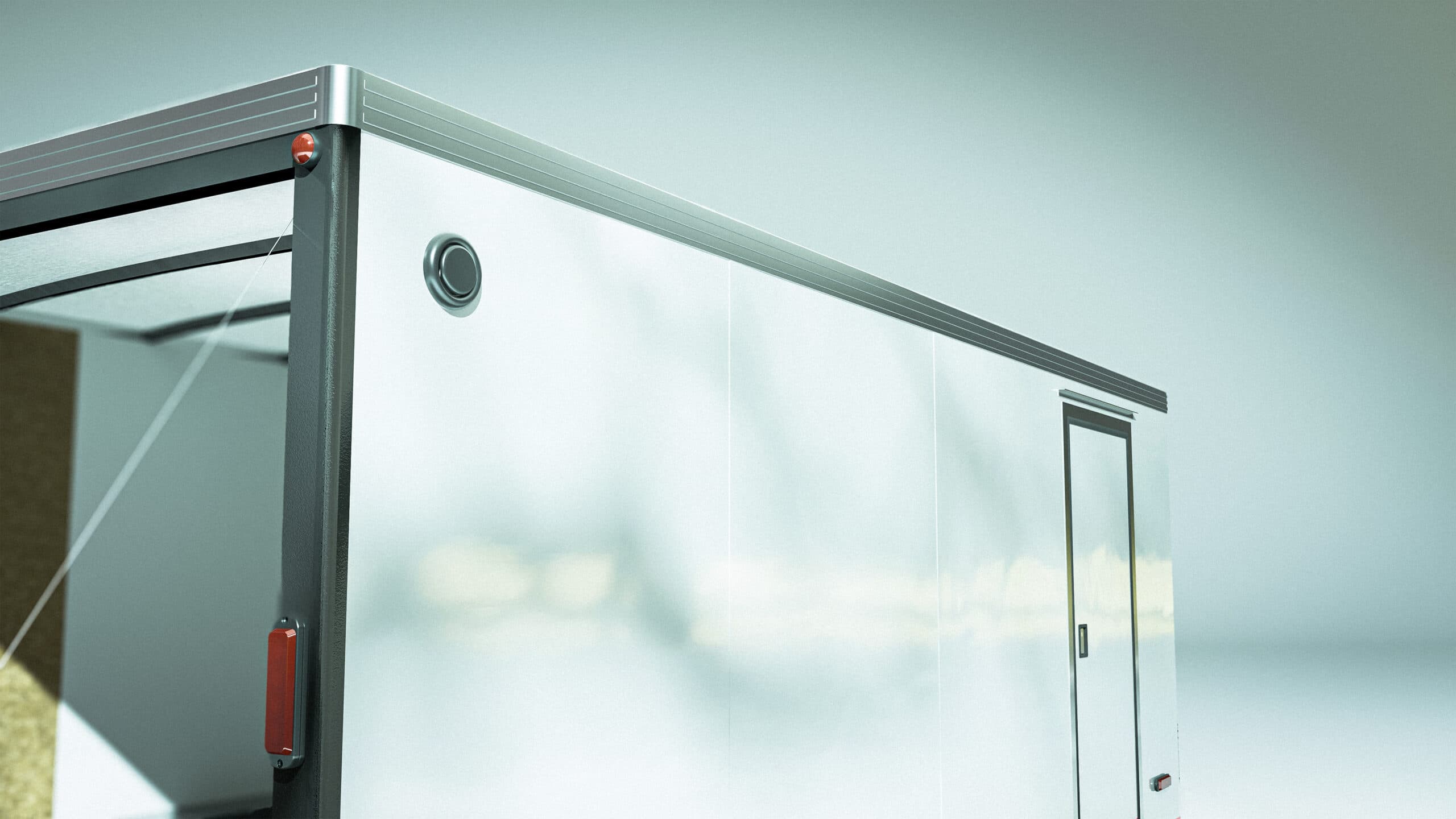

Lightweight strength with lasting appeal. BRAWN SuperStratum™ ACP blends Low-Density Polyethylene with mineral reinforcement for superior structural integrity, ideal for exterior and interior wall applications in cargo trailers, RVs, and commercial builds.

Thickness.080" / .012"
Width49"
Lengths78", 84", 96", 108", 144"
ColorsWhite, Black, Silver, Charcoal (+ custom)
Surface CoatingHDPE, PE or PVDF
Temp Resistance-58°F to +176°F
Flexural Strength≥100 N/mm
Tensile Strength≥130 N/mm
Tolerances±2mm width / ±4mm length / ±0.2mm thickness

Impact & Water Resistant

Strong impact and water resistance. Resistant to warping even in extreme temperatures. Prevents oil canning and reduces noise.

Advanced Composition

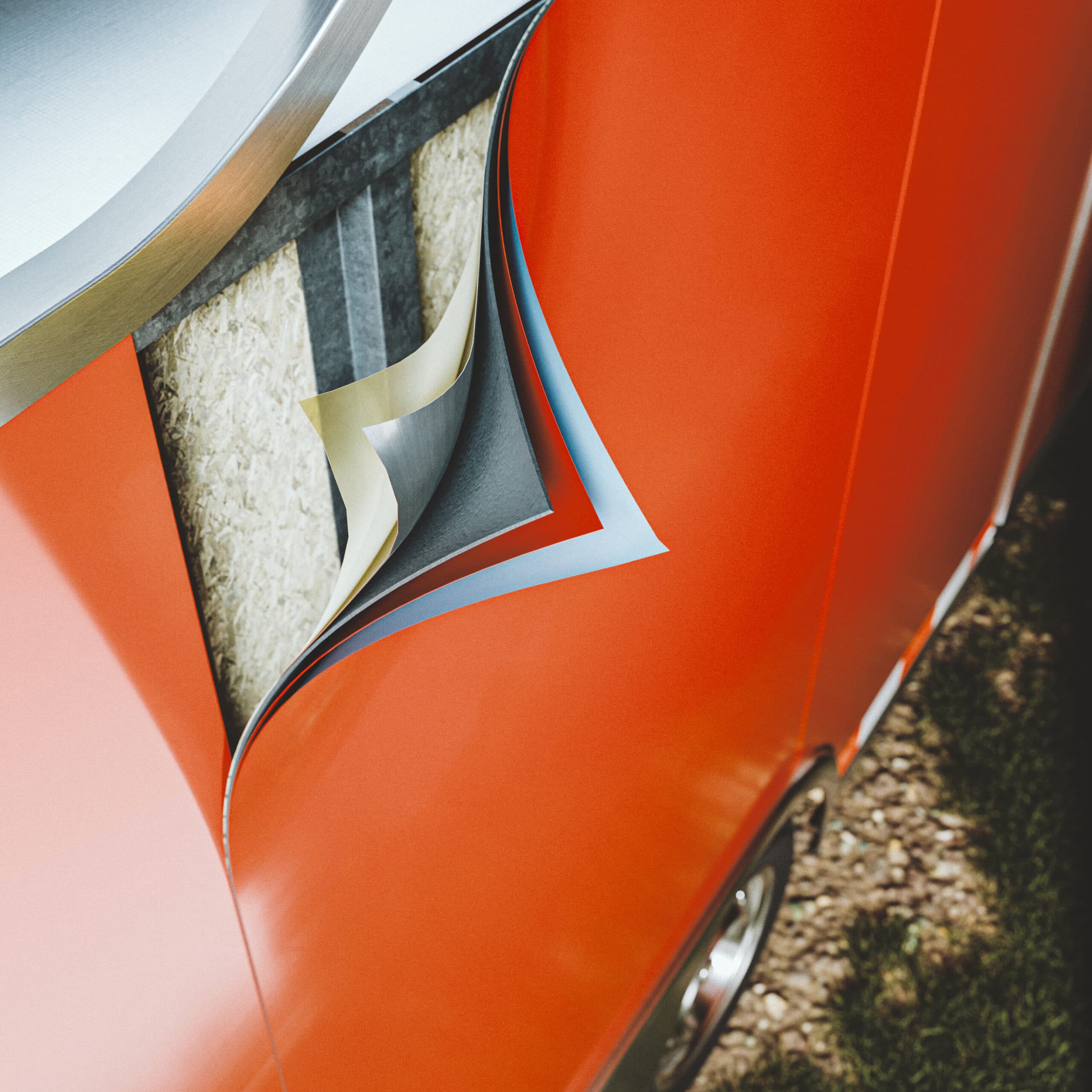

Aluminum skin layers for strength bonded to an LDPE-mineral core, significantly increasing structural integrity while maintaining lightweight properties.

Premium Finish

Durable, high-quality paint finish in vibrant colors. Standard stock in White, Black, Silver, and Charcoal. Custom colors available by request.

Cut-to-Size

Available in cut-to-size options that reduce material waste and eliminate additional on-site cutting, saving time at the assembly line.
